72" HDX Low Profile Material Bucket
Original price
$2,220.00
-
Original price
$2,750.00
Original price
$2,220.00
$2,220.00
-
$2,750.00
Current price
$2,220.00

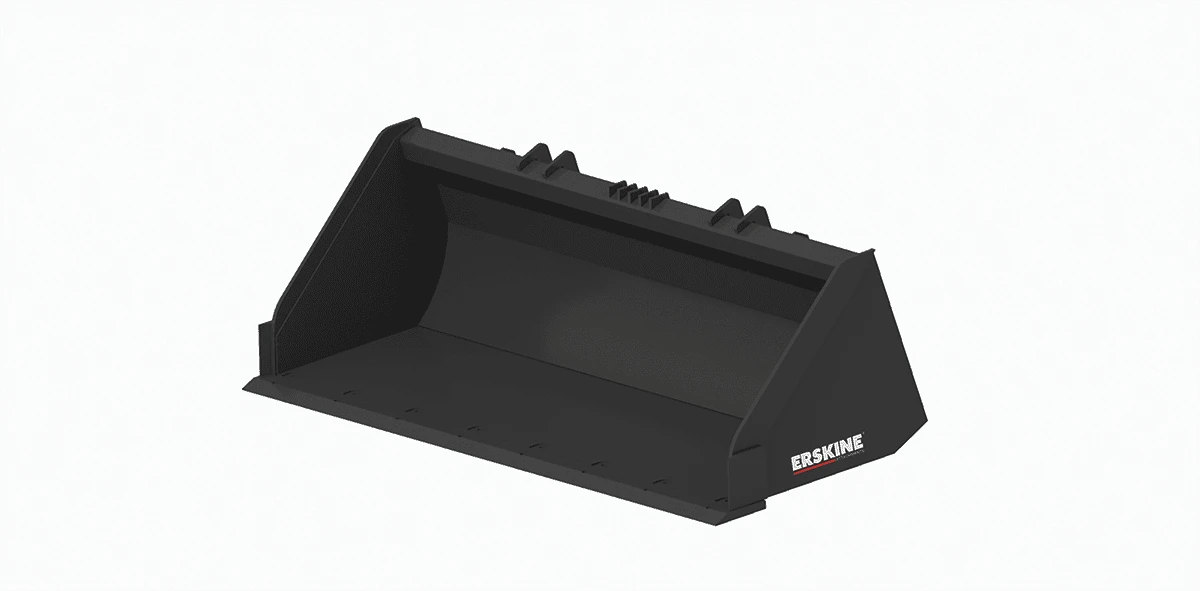

The Heavy-Duty Low Profile Material Bucket is engineered for larger HP machines. The additional steel thickness and larger cutting edge are designed to withstand rigorous use.
Features
- 1” thick x 8” wide cutting edge
- 1⁄2” wear bars
- 3” x 3” x 3/16” tubular backbone
- 5/16” reinforced attach plate
- 1/2” side ribs with 3/16” body
- Recommended for 75 horsepower and above track loaders
- Treaded step
- Optional Welded Teeth
Specifications
| Hardened Side Cutting Edges | 3/4” x 6” |
| Weight | 720 / 775 |
| Overall Width | 72.88” |
| Wear Bars | 1/2” |
| SSQA Plate | 3/8” |
| SSQA Reinforcement Ribs | 1/2” |
| Side Braces | 1/2” |
| Height | 25.875” |
| Overall Depth | 37.625” |
| Capacity (struck) | .68 cu yds |
| Built in Cutting Edge | 1” x 8” |
| Top Tubular Reinforcement | 3”x 3” x 3/16” |
| Body Thickness | 3/16” |
| Recommended HP | 75 HP + |
