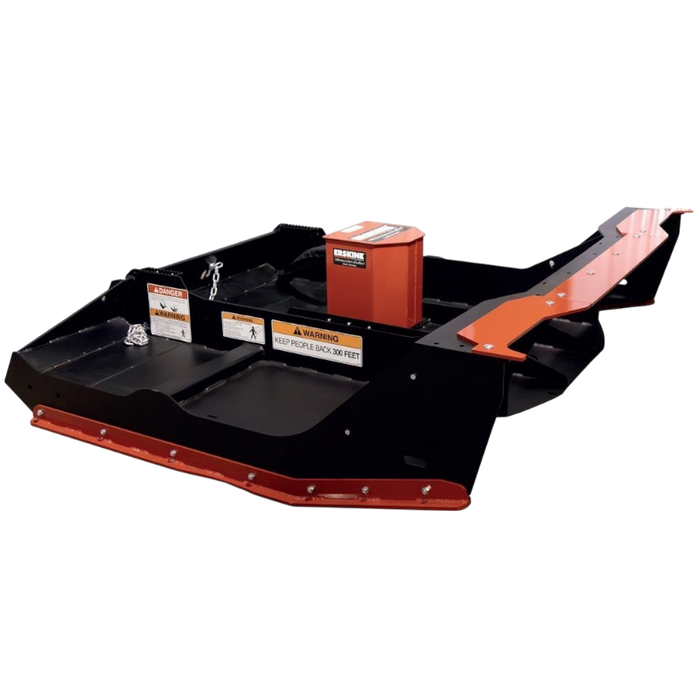

BCX 80" Open Front Brush Cutter - High Flow (25-41 GPM)
Original price
$14,035.00
-
Original price
$14,035.00
Original price
$14,035.00
$14,035.00
-
$14,035.00
Current price
$14,035.00
Take back your property with the Open Front Brush Cutter. An industry leading 10” cutting capacity makes quick work of both big and small material along with mowing tall grass. The movable push bar, flow ranges, and cut sizes to directly match to your machine and use.
Features
- 10” Cutting capacity
- Unique automatic Float-n-Tilt system
- 12 Replaceable mulching teeth line the bottom of the flywheel
- Patent pending movable push bar to suit different operators and machines
- 1/4“ Thick grade 50 steel deck material
- 2”x 4” 1/4” Tubing is welded directly into the side plates to create a fully boxed deck
- Replaceable skid shoe provide extra flotation and are angled specifically for back dragging to create a finer finish
- High flow models equipped with high efficiency piston motors
Specifications
| Operating Weight | 1813 lbs. |
| Overall Height | 24" |
| Overall Length | 84.5" |
| Overall Width | 86" |
| Blade Carrier Thickness | 3/4" Grade 50 Steel |
| Cutting Width | 80" |
| Number of Blades | (4) 1/2" 17.5" Long |
| Number of Carbides | 12 |
| Flow Range | 25-41 GPM (High Flow) |
| Maximum PSI | 4641 |
| Blade System Mass | 400 lbs. |
| Tip Speed | 12,000 ft/min @ 25 GPM & 19,200 ft/min @ 40 GPM |
| Wire Catchers | Yes |
| Bearing Carrier Weight | 80 lbs. |
| Output Bearing Size | 2.875" |
| Case Drain | Required |
