Skid Steer Mini Trencher
Original price
$7,914.50
-
Original price
$9,075.00
Original price
$7,914.50
$7,914.50
-
$9,075.00
Current price
$7,914.50

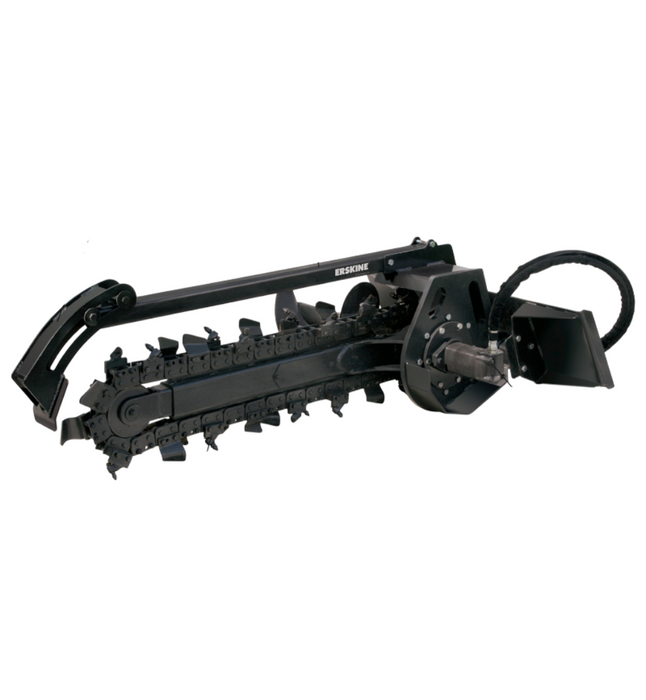

The Mini Trencher is the perfect trench digging solution for your mini skid steer or walk behind machine. Cut through the toughest earth with ease with available bullet and scorpion tooth chains. The spoil auger is also removable allowing you to get right up to the side of a structure or other obstacle.
Features
- Direct-drive design
- 3’ boom with crumber shoe that is removable
- 12” spoil auger that is removable
- Available in 6” and 8” widths
Specifications
| Overall Width | 40.38” |
| Overall Height | 24” |
| Overall Length | 79.38” |
| Trenching Depth @ 60° | 38” |
| Operating psi | 2,000 - 3,000 psi |
| Rated Flow | 7-16 GPM |
| Shaft Speed | 85-185 RPM |
| Weight (3’ x 6” Double Chain) | 670 lb. |
| Mounting Kit Configurations | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow) |
| Options | Factory Installed Couplers |
