24HDRS 24" Heavy-Duty Rock Saw
Original price
$31,310.00
-
Original price
$33,860.00
Original price
$31,310.00
$31,310.00
-
$33,860.00
Current price
$31,310.00

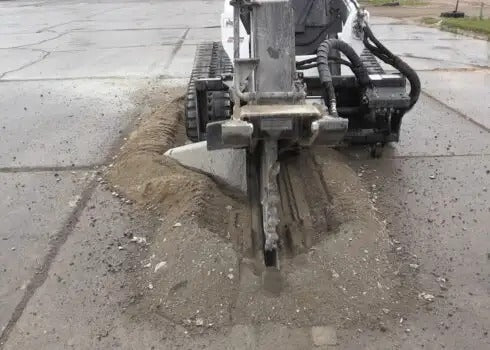

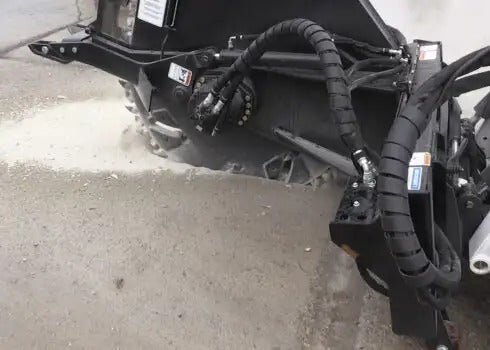

Cut through asphalt and concrete with greater efficiency with the Heavy-Duty Rock Saw. This powerhouse delivers up to 20 FPM cutting speeds. Hydraulic side-shift and depth control allows skid steer operators to shift it up to 24” for maneuvering close to buildings and other obstacles from the comfort of your seat. Cut up to 18” or 24” deep. Side cutting teeth, a side motor protection blade, and a floating spoil deflector come standard.
Features
- Highly visible depth gauge allows for more precise control over cutting depth
- Large spindle & support bearing improves cutting effciency by stabilizing the cutter head
- Side cutter head teeth minimize any cutter head binding while cutting full depth trenches
- Dual depth control legs improve stability while cutting
- New motor & gearbox provides 33% more available torque than the standard Rock Saw
- Our universal quick attach plates fit most skid steers
Specifications
| Minimum Flow Rate | 25 GPM |
| Maximum Flow Rate | 60 GPM |
| Maximum Speed | 130 RPM |
| Minimum Operating Pressure | 2,200 psi |
| Maximum Pressure | 4,800 psi |
| Maximum Power Output | 80 HP |
| Maximum Torque | 6,640 lb-ft |
| Hydraulic Flow Classification | High Flow |
| Number of Teeth | 72 |
| Width of Cut | 2.75" |
| Depth of Cut | 24" |
| Depth Control | Hydraulic |
| Side-Shift Distance | 24" |
| Side-Shift Control | Hydraulic |
| Overall Width | 66.5" |
| Overall Length | 76.2" |
| Overall Height | 64" |
| Weight | 3,300 lbs. |
| Cutting Speed | Up to 20 FPM |
| Options | • Pistol Grip Control Harness • Loader Specific Wire Harness • Case Drain Coupler Required • Factory Installed Case Drain Coupler • Factory Installed Couplers • Factory Installed High Flow Couplers |
