3 Function Winged Snowblade
Original price
$12,475.00
-
Original price
$12,475.00
Original price
$12,475.00
$12,475.00
-
$12,475.00
Current price
$12,475.00

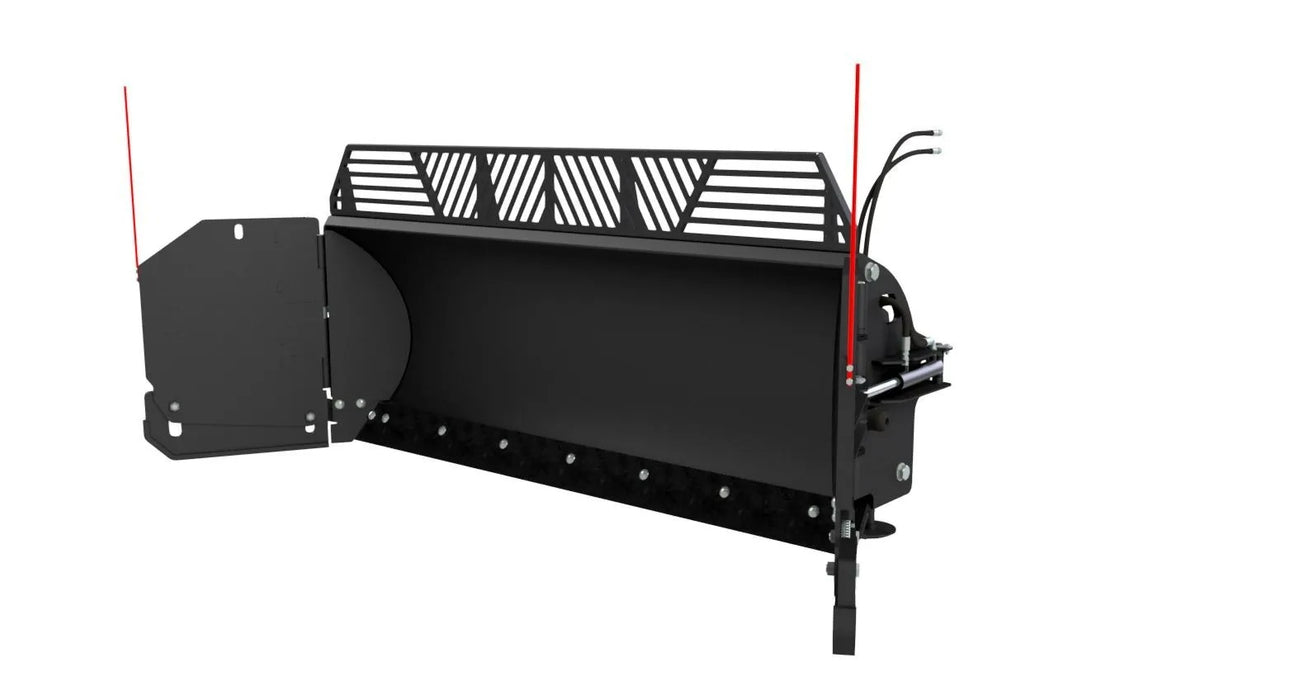

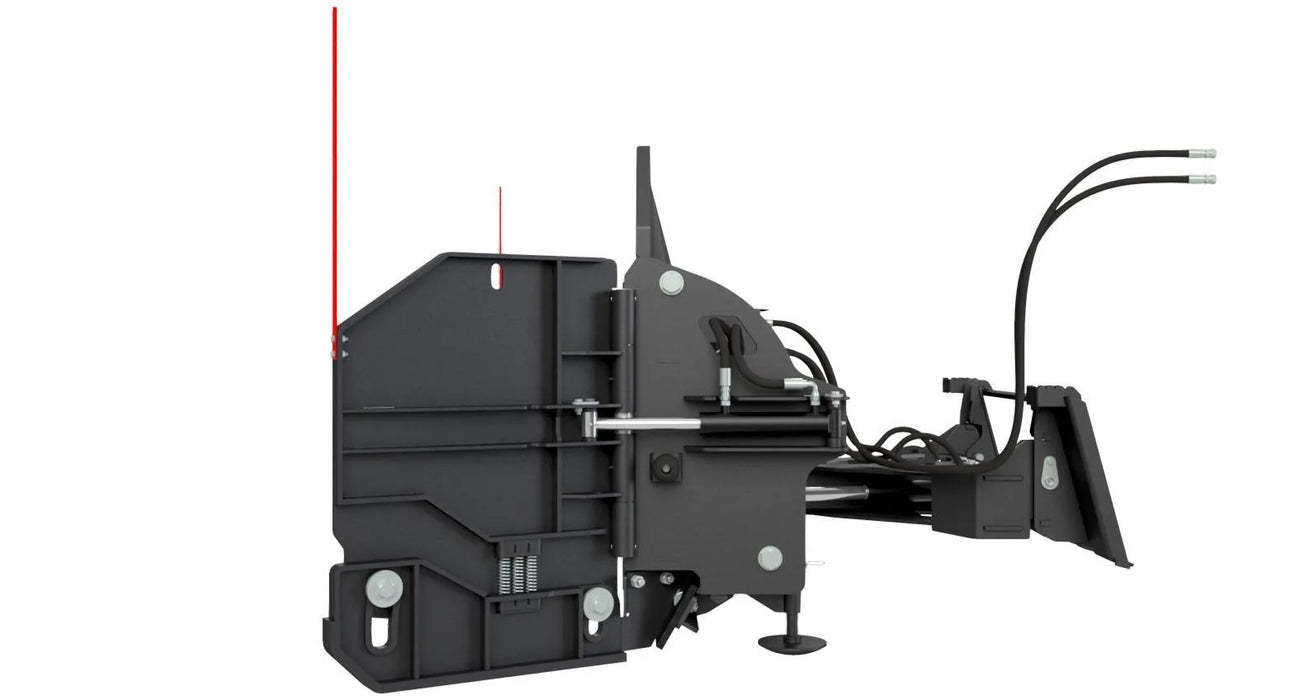

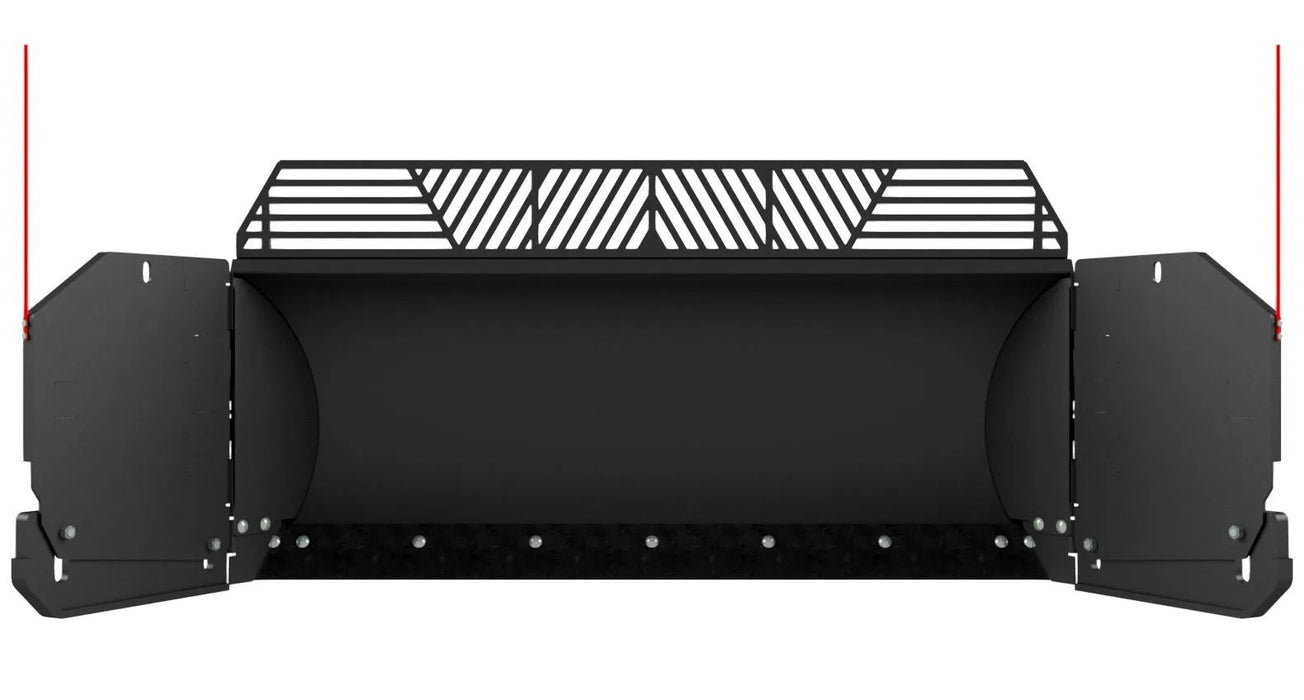

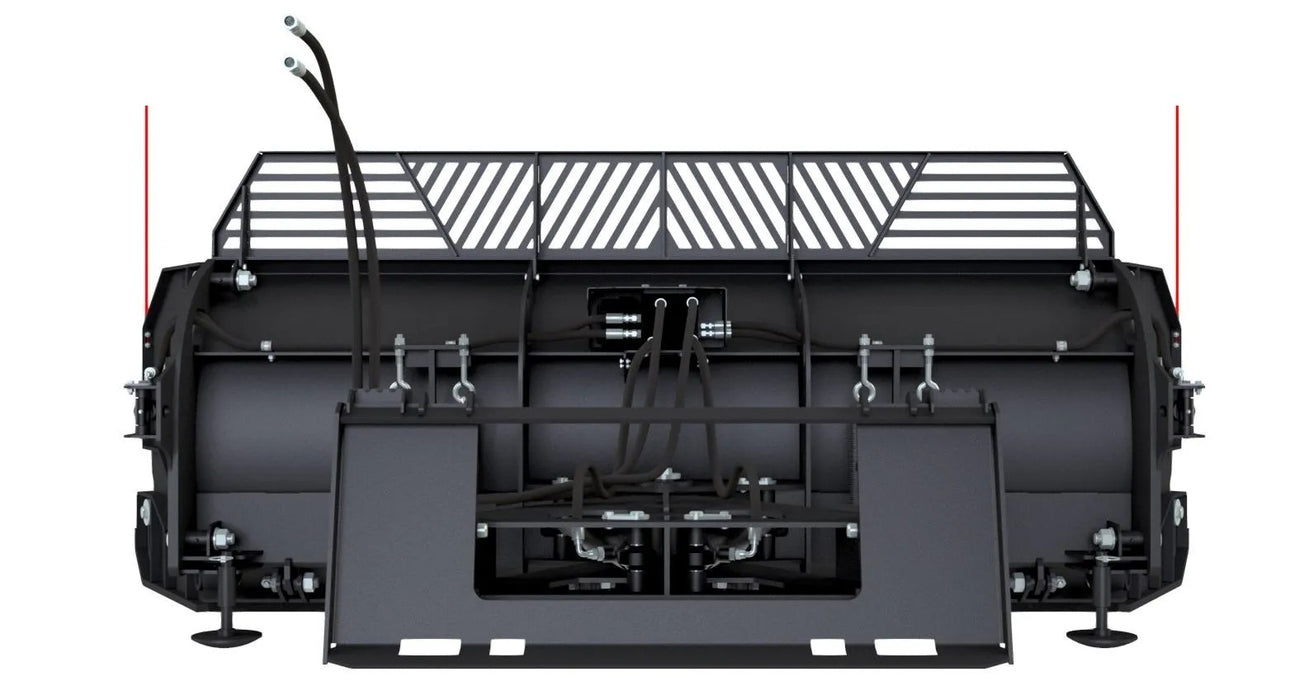

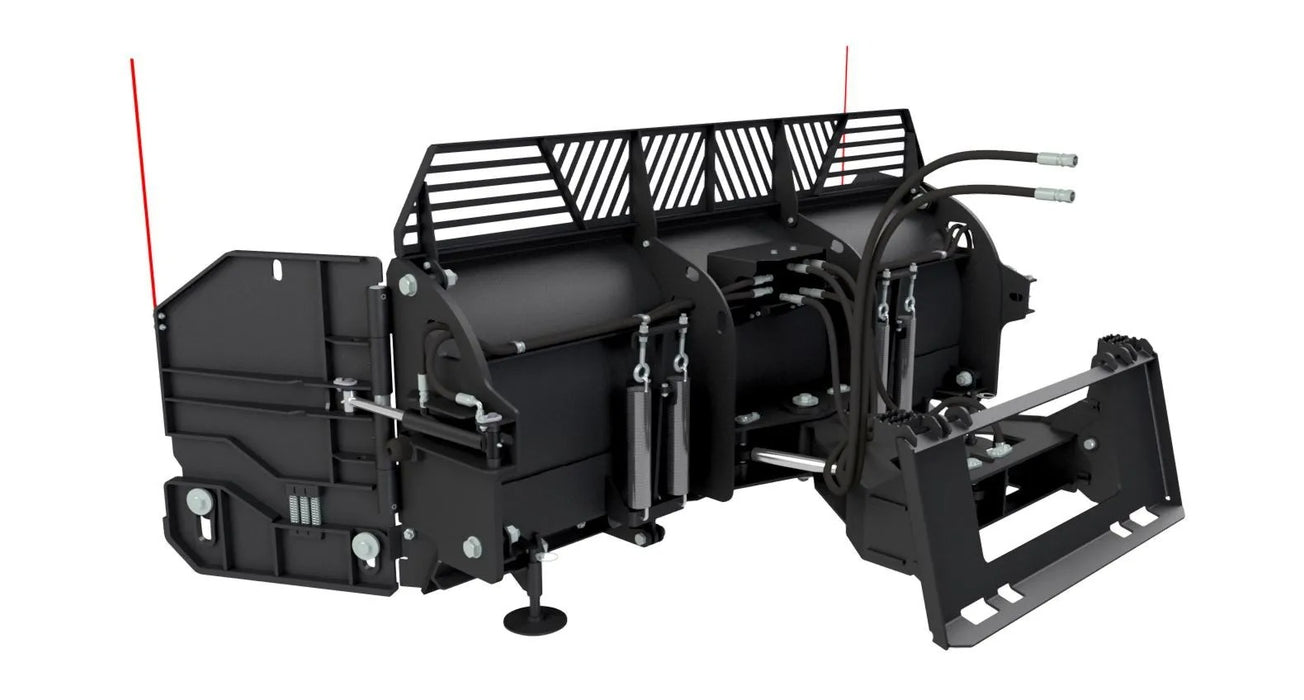

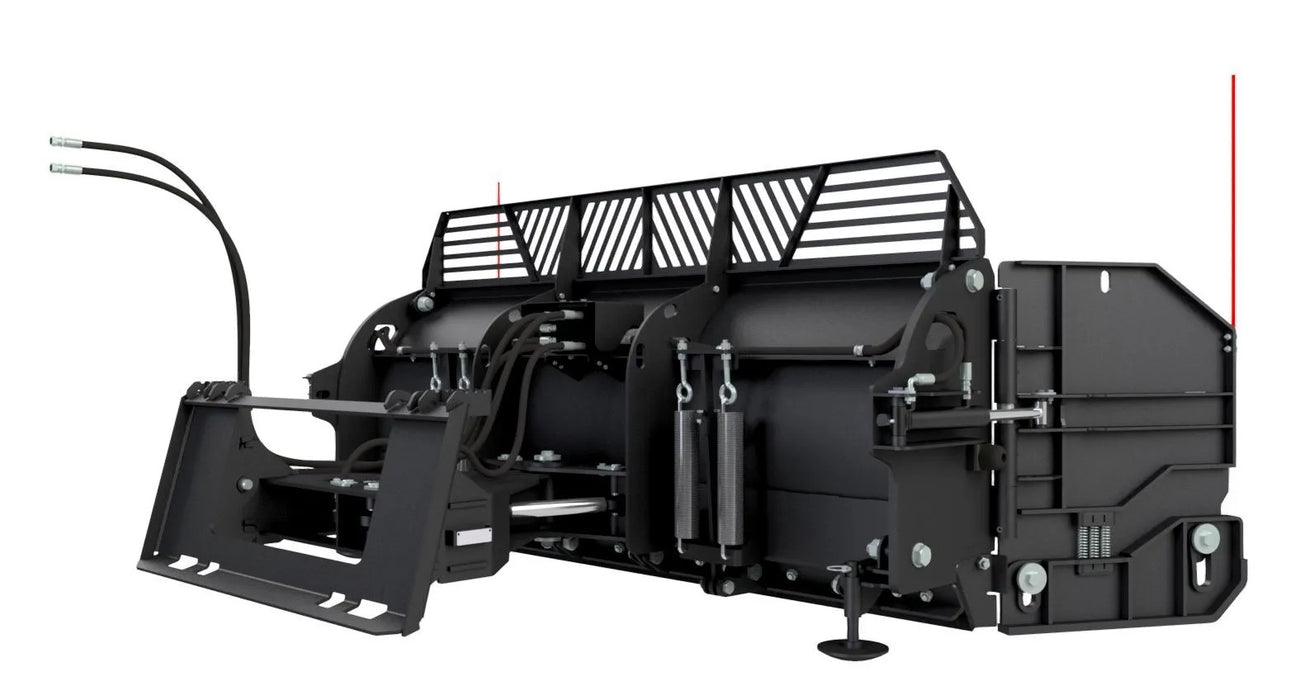

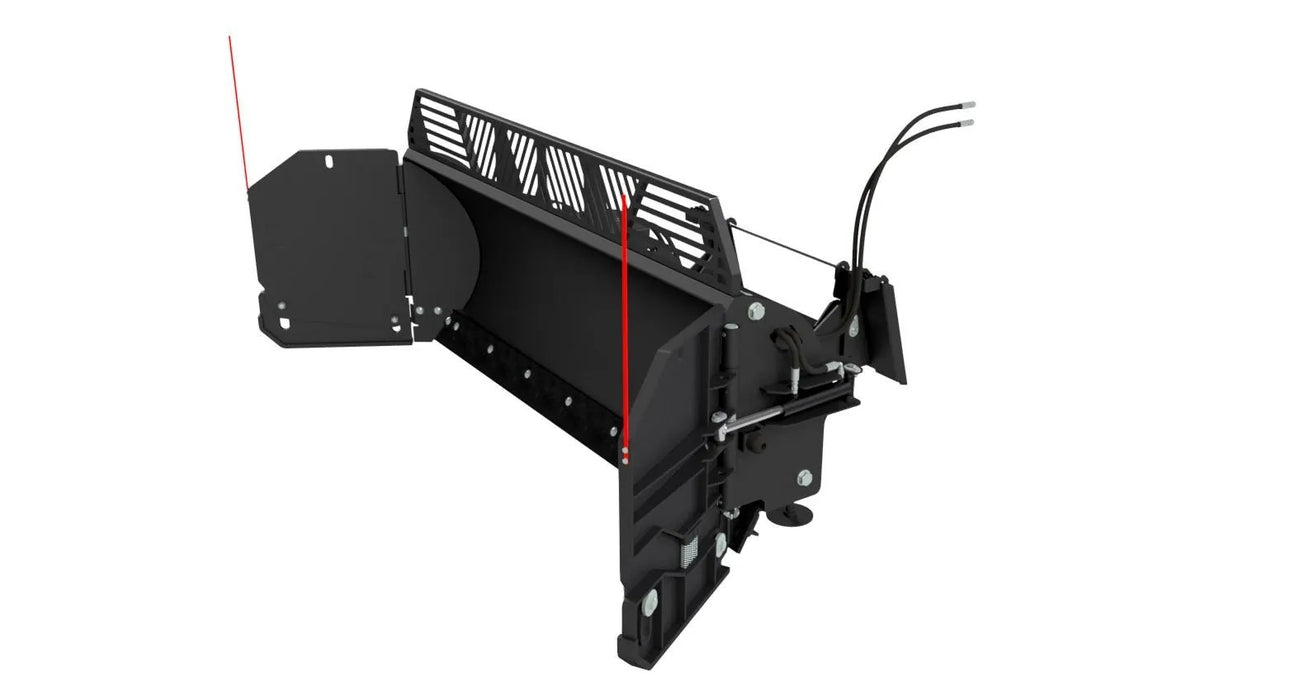

The winged snowblade is the ultimate snow removal attachment for large open area’s and long driveways with room to push snow piles. Combined with built in oscillation of ± 5° and float of 10° up, 5° down this unit follows all the contours you may encounter on the job. Two models up to 156″ wide when fully expanded allow this unit make quick work of snow, the extra tall moldboard with spill guard captures as much snow as your machine can handle. All of these items combine to make it the best winged snow blade on the market.
Features
- + or – 5 degree’s of oscillation and 10° up, 5° down of float to follow contours of the ground
- 3 function control provides full moldboard control in pusher, straight, and back drag positions while also providing individual wing control
- Floating moldboard and adjustable skid shoes
- Built in spill guard to carry massive amount’s of snow
Specifications
| Moldboard Width | 84” / 108” |
| Working Width - Pusher | 109” / 133” |
| Overall Width - Pusher | 113” / 137” |
| Working Width - Straight | 136” / 160” |
| Working Width - Back Drag | 96” / 120” |
| Overall Width - Back Drag | 100” / 124” |
| Working Width - Windrow | 75” to 97” @ 30° / 96” to 118” @ 30° |
| Overall Length - Pusher | 72” |
| Overall Length - Back Drag | 52” |
| Overall Height (w/ markers) | 51” |
| Blade Angling | Hydraulic, ± 30° |
| Wing Angling | Hydraulic, 60° forward, 80° backward |
| Mount Flotation | 10° up, 5° down |
| Blade Oscillation | ± 5° |
| Trip Style | Trip Edge |
| Moldboard Height | 32.75” |
| Height with Spill Guard | 42.75” |
| Moldboard Thickness | 10ga |
| Operating Weight | 1,385 lbs. / 1,500 lbs. |
