78" 6-Way Dozer Blade/Grader/Leveler
Original price
$7,420.00
-
Original price
$12,030.00
Original price
$7,420.00
$7,420.00
-
$12,030.00
Current price
$7,420.00

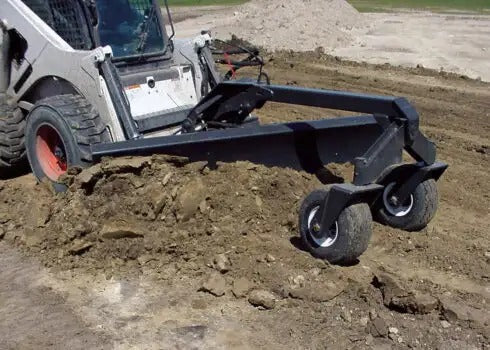

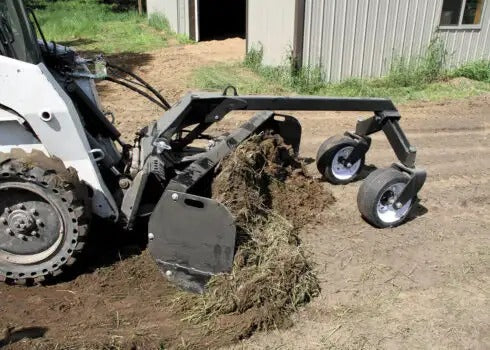

Turn your skid steer into a high performance, dirt moving machine. This dozer, grader, and leveler is an all-in-one package. Ideal for dozing, scraping, and cutting swales, as well as leveling roads, yards, and job sites. Six-way hydraulically controlled dozer blade is easy to operate. Saves job site prep time.
Features
- Heavy-duty, quality construction and design
- Adjustable depth skid shoes for control of cutting edge design
- Bolt-on, reversible, three-piece cutting edge
- Optional EZ Grading/Leveling Package (wing kit) eliminates unwanted blade hop.
Specifications
| Weight | 880 lbs. |
| Blade Width | 78” |
| Width Fully Angled | 67.5” @ 30° |
| Tilt Angle | +/- 11.5° |
| Cutting Edge | 1/2” x 6” |
| Angle Cylinders | 3" x 8" (2) |
| Tilt Cylinder | 3" x 4" |
| Moldboard Height | 26.7” |
| Moldboard Thickness | 1/4" |
| Options | • EZ Grading/Leveling Combo Package • Wing Kit • Pistol Grip Control Harness • Loader Specific Wire Harness • Factory Installed Couplers |
