Extreme Duty Skid Steer Grapple Bucket

McLaren’s Extreme Duty Grapple Bucket is a vital tool for nearly all contractors. Our attachment is designed for work in harsh environments to remove building, forestry and scrap yard debris

McLaren’s Extreme Duty Grapple Bucket uses hydraulic cylinders that operate independently which perform better for uneven loads. With a closed bottom system, this attachment is made to pick up the most material possible without letting anything through.

Features

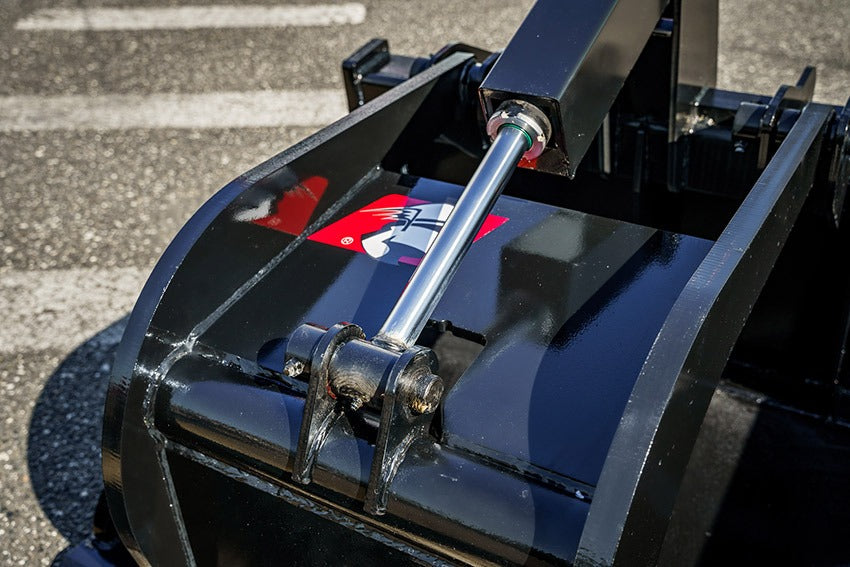

• Independent Dual Hydraulic Cylinders (2"x10") Each thumb operates independently, providing superior control and performance over uneven or irregular loads.
• Closed-Bottom Design The sealed bottom prevents debris from falling through, maximizing carrying capacity and efficiency.
• Heavy-Duty Steel Construction Boasts a reinforced 1/4" thick steel bottom and 1" thick sidewalls, with 1" thick independent thumb tines for extreme durability.
• High Grapple Force Engineered to deliver up to 9,500 lbs of clamping power for handling large rocks, logs, scrap, and demolition debris.
• Fully Protected Hydraulic & Maintenance Features Comes equipped with Parker hoses, fittings, couplers, fully shielded cylinders, oversized greaseable pins (1 1/4"), and a convenient treaded step.

Specifications

User Guides and Manuals

• Product Brochure
