Extreme Duty Skid Steer Rock Grapple Bucket

Our Extreme Duty Skid Steer Rock Grapple Bucket is manufactured to robust OEM standards and requirements. McLaren’s Rock Grapple attachment is built with closer spacing between tines, thicker steel, and more weld lines to make it one of the heaviest built skid steer rock rake grapples in the industry.

Our OEM series of attachments are built to meet and exceed OEM specs. These Extreme Duty rock grapple attachments are built to be worked hard in any environment and last for years.

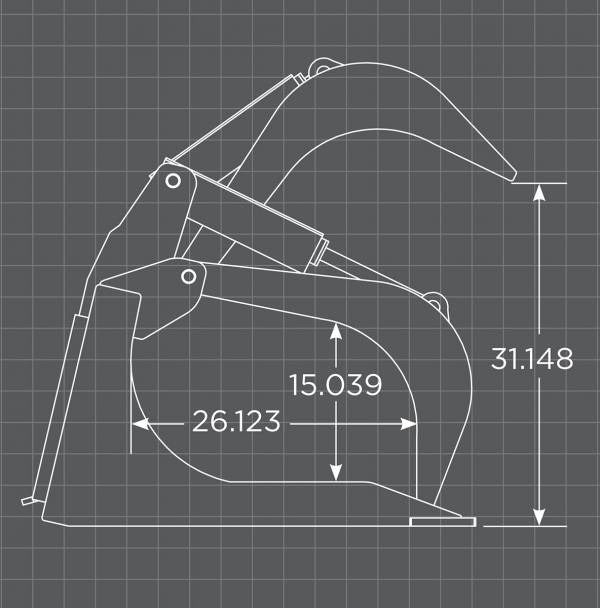

This skid steer rock bucket’s grapple forks open up to just over 31”. Our heavy-duty Rock Grapple Bucket is a great tool for performing multiple functions: load or pile logs, brush, rocks, demolition debris, and many other materials. Ideal for separating dirt from rock, lumber or building materials with ease.

Features

• Built to OEM Specifications with Heavy-Duty Construction Engineered using thicker steel, closely spaced tines, and additional weld reinforcements to handle the most demanding workloads.
• 1/2" Thick Steel Tines with 3" Spacing Ensures rigid durability while allowing dirt to sift through easily, improving cleaning efficiency.
• Independent Dual 2" x 10" Hydraulic Cylinders Grapple forks operate independently for secure handling of uneven loads.
• Rugged Hydraulic Setup with Oversized Greaseable Pins Comes with Parker hoses, couplers, greaseable 1 1/4" pins, protected cylinders, and a reinforced quick-attach plate for longevity and reduced maintenance.
• Grapple Opening and Treaded Step for Safe Operation Offers wide capacity to handle logs, brush, debris, stone and more; includes a treaded step for safer user access.

Specifications

User Guides and Manuals

• Product Brochure
