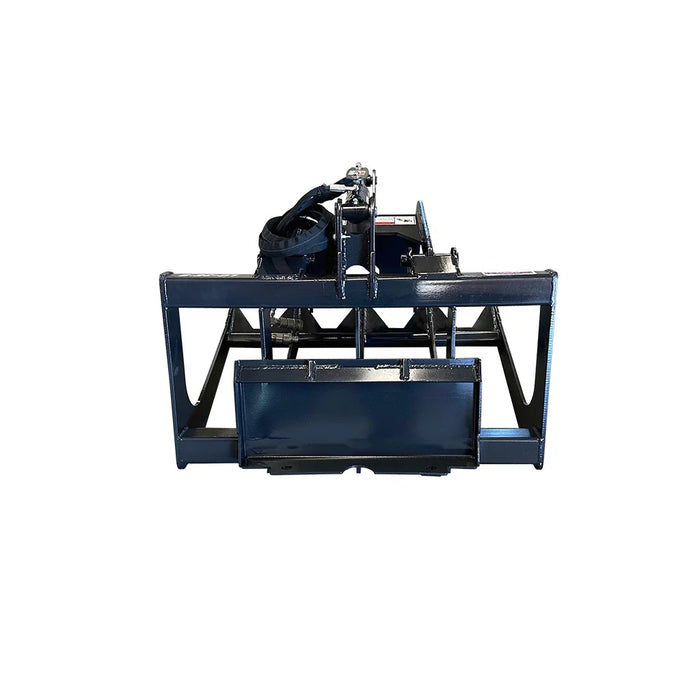

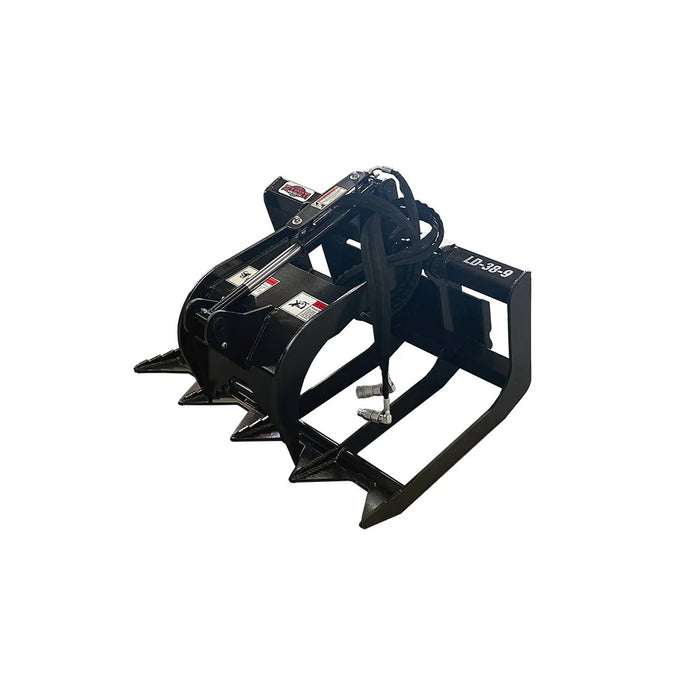

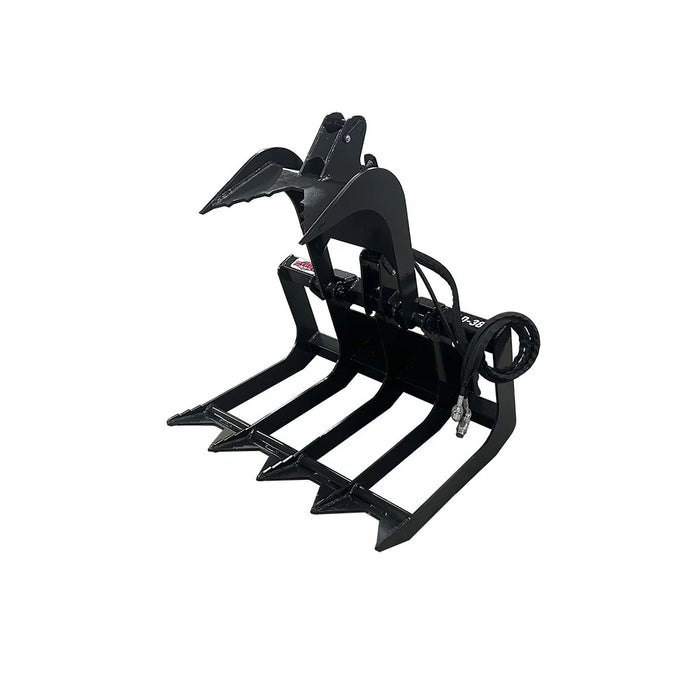

Brush and Root Grapple 38-9 With Mini Quick Attach
Original price
$1,799.00
-
Original price
$1,799.00
Original price
$1,799.00
$1,799.00
-
$1,799.00
Current price
$1,799.00
The Stout Brush and Root Grapple 38-9, featuring a Mini Quick Attach system, is a compact and powerful grapple attachment made from 50,000 psi-grade steel. Weighing 290 lbs, it includes a 38" bucket with five 3/8" thick tines spaced 8" apart, and delivers precise handling through dual 2" x 8" hydraulic cylinders rated at 2,500 psi. Built in the USA, it’s designed for reliable brush and root clearing with protective hose sleeves and greaseable pivot points.
Features
- Ultra-Durable Grade 50 Steel Construction Crafted from 50,000 psi high-strength steel, this grapple maintains rugged durability in demanding conditions while remaining lightweight at just 290 lbs.
- Compact Mini Quick Attach Compatibility Designed with a Mini Quick Attach interface, it seamlessly fits Toro and Dingo mini loaders—expanding versatility across compact equipment platforms.
- Protected Hydraulic System and Greaseable Pivots Features dual 2" x 8" hydraulic cylinders rated at 2,500 psi, fully sleeved hydraulic hoses, hose keepers, and greaseable pivot points for streamlined maintenance and extended service life.
Specifications
| Material | Made entirely with high-strength 50,000 psi steel |
| Weight | 290 lbs |
| Width | 38" |
| Height | 30" |
| Depth | 33" |
| Tine Spacing | 8" |
| Tine Thickness | 3/8" |
| Number of Tines | 5 |
| Grapple Opening | 32" |
| Grapple Width | 19" |
| Grapple Arm Thickness | 1/2" |
| Hydraulic Cylinders | 2" bore x 8" stroke, 2,500 psi |
| Mount Type | Mini Quick Attach (Toro/Dingo) |
| Pivots | Fully greaseable with hydraulic hose protection and hose keepers |
| Couplers | 1/2" flat-face hydraulics |
| Tube Construction | 3" x 3" top and bottom, 2" front tube |
| Tine Depth | 27" |
| Origin | Made in the USA |
