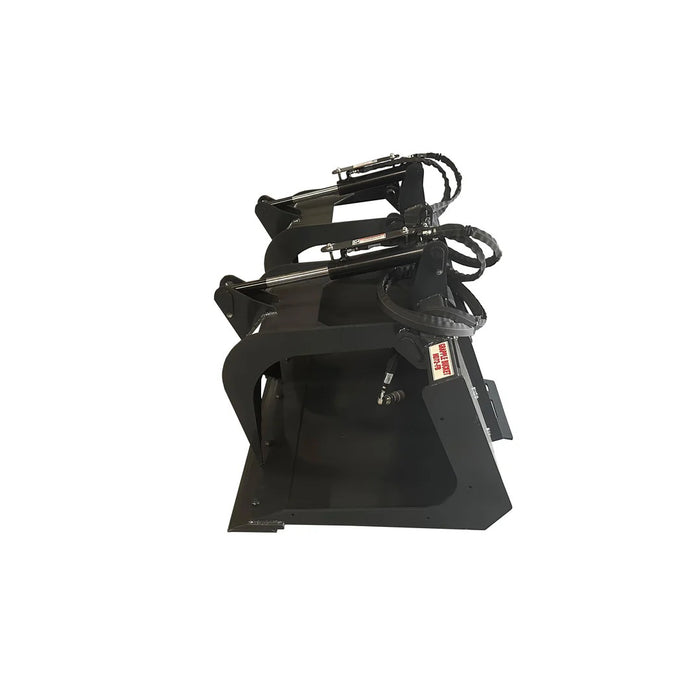

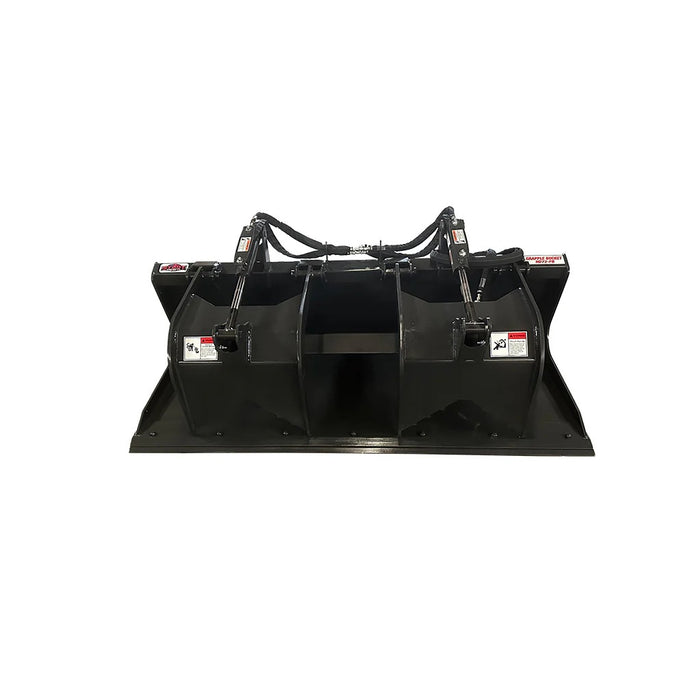

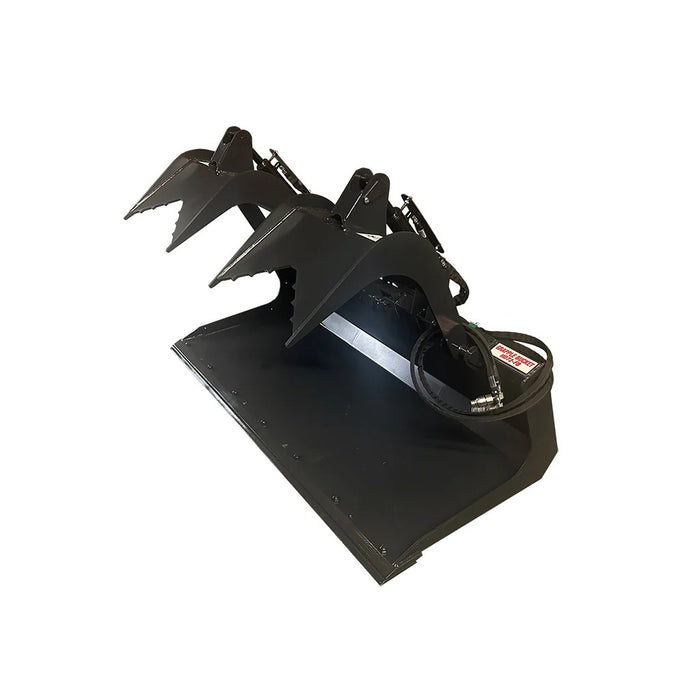

72" Flat Bottom Grapple Bucket With Skid Steer Quick Attach
Original price
$1,999.00
-
Original price
$2,699.00
Original price
$1,999.00
$1,999.00
-
$2,699.00
Current price
$1,999.00
The Stout 72" Flat Bottom Grapple is an excellent "bucket" style grapple that keeps what you're scooping from falling through like a tine style grapple allows. Available in three cutting edge styles either a single cutting edge, double cutting edge, or a tooth edge, the Stout Flat Bottom covers a wide range of needs. Optional Bolt on sides can make the Stout Flat Bottom grapple more versatile.
Features
- Bucket-style design that prevents material loss Unlike tine grapples, this flat-bottom bucket design ensures debris, rocks, and loose material stay securely contained.
- Versatile cutting edge options Choose from a single bevel edge, double cutting edge, or tooth edge to suit different working conditions.
- Heavy-duty build using high-strength 50,000 PSI steel engineered for durability and strength in demanding environments.
- Robust structural dimensions Features include 3/8" thick steel sides, a 1/4" bucket skin, a 32" grapple opening, and an 18" grapple width.
- Fully greaseable pivot points for smooth operation Designed to reduce wear and simplify maintenance over the long term.
Specifications
| Unit Weight (Single Edge) | 710 lbs |
| Unit Weight (Double Cutting Edge) | 765 lbs |
| Unit Weight (Tooth Edge) | 805 lbs |
| Dimensions (Width × Height × Depth) | 72" x 30" x 33" |
| Side Thickness | 3/8" |
| Bucket Skin Thickness | 1/4" |
| Grapple Opening | 32" |
| Grapple Width | 18" |
| Pivot Points | Fully greaseable grapple pivot points |
| Cutting Edge Options |
Single Edge — 3/4" x 6" bevel welded in; Double Cutting Edge — 3/4" x 6" bevel welded in with bolt pattern; Tooth Edge — 3/4" x 6" bevel welded in, with 8 teeth |
| Mount | Universal Skid Steer Quick Attach (J2513 specification) |
| Hydraulic Couplers | 1/2" flat-face couplers |
| Material | Made entirely of Grade 50 steel |
| Hydraulic Cylinder | 2" bore × 8" stroke; fully greaseable pivot points; 2500 PSI working load |
