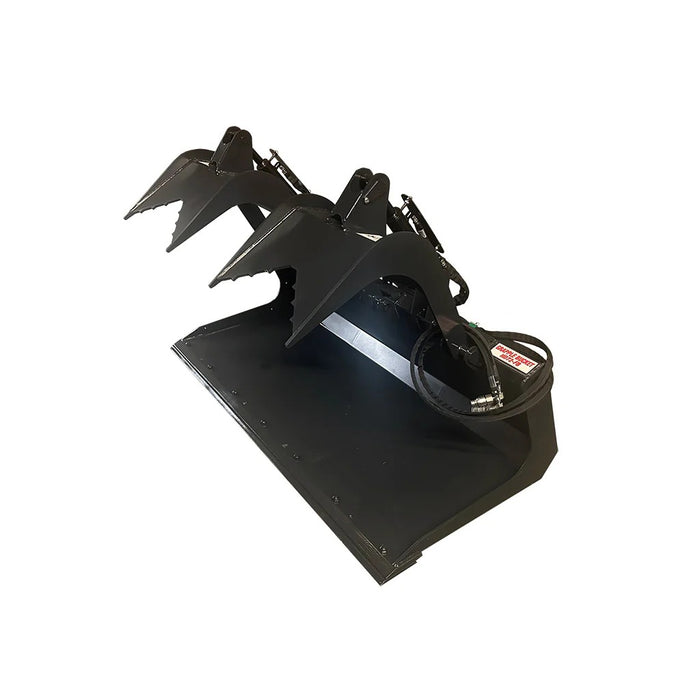

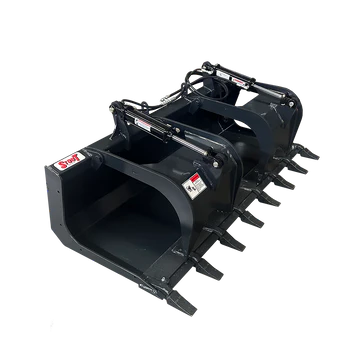

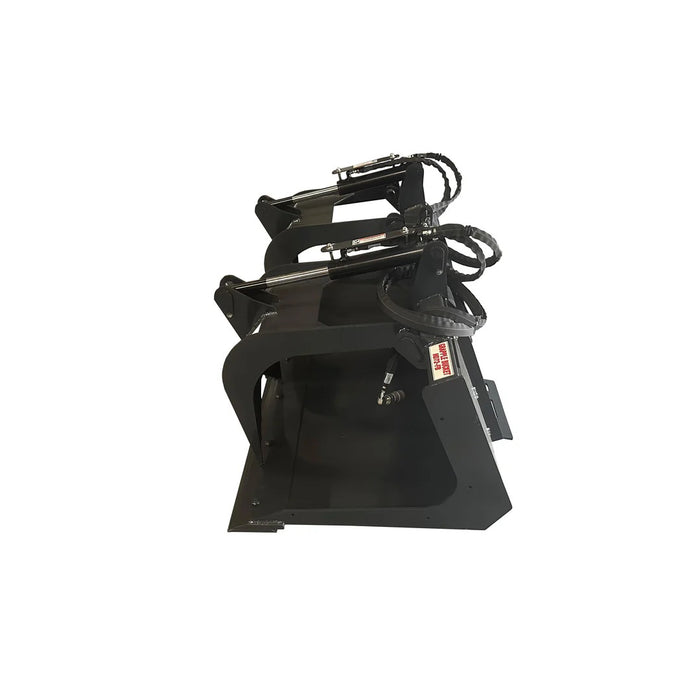

78" Flat Bottom Grapple Bucket With Skid Steer Quick Attach
Original price
$2,099.00
-
Original price
$2,849.00
Original price
$2,099.00
$2,099.00
-
$2,849.00
Current price
$2,099.00
The Stout 78" Flat Bottom Grapple is an excellent "bucket" style grapple that keeps what you're scooping from falling through like a tine style grapple allows. Available in three cutting edge styles either a single cutting edge, double cutting edge, or a tooth edge, the Stout Flat Bottom covers a wide range of needs. Optional Bolt on sides can make the Stout Flat Bottom grapple more versatile.
Features
- Bucket-style design that prevents material loss unlike tine grapples, it securely holds scoop contents without letting debris fall through.
- High-strength construction with 50,000 psi Grade 50 steel built for exceptional durability and performance in heavy-duty environments.
- Multiple cutting edge options select from single edge, double cutting edge, or tooth edge styles to suit various tasks and material types.
- Optional bolt-on side plates for versatility allows quick adaptation for increased bucket capacity and functionality.
- Hydraulic cylinders that automatically adjust to uneven loads improves handling efficiency and ensures smooth operation across varied materials.
Specifications
| Weight |
Single Edge - 770 lbs Double Cut Edge - 825 lbs Tooth Edge - 850 lbs |
| Width | 78" |
| Height | 30" |
| Depth | 33" |
| Side Thickness | 3/8" |
| Bucket Skin Thickness | 1/4" |
| Grapple Opening | 32" |
| Grapple Width | 18" |
| Grapple Pivot Points | Fully Grease-able |
| Single Edge | 3/4" x 6" Bevel Edge welded in |
| Double Cutting Edge | 3/4" x 6" Bevel Edge welded in with Bolt Pattern and 1/2" x 6" Double Bevel Reversible Bolted on Edge |
| Tooth Edge | 3/4" x 6" Bevel Edge welded in, 9 Teeth |
| Mount Specs | J2513, Skid Steer Universal Quick Attach |
| Hydraulic Couplers | 1/2" Flat Face Couplers |
| Hydraulic System | Hydraulic Cylinders Automatically Adjust to Uneven Bucket Loads |
| Hoses | Fully Encased in Protective Sleeves, Hose Keeper included |
| Hydraulic Cylinders | Bore x Stroke - 2" x 8", 2500 Working PSI, Fully Grease-able Pivot Points |
| Material | Made entirely of Grade 50 Steel |
