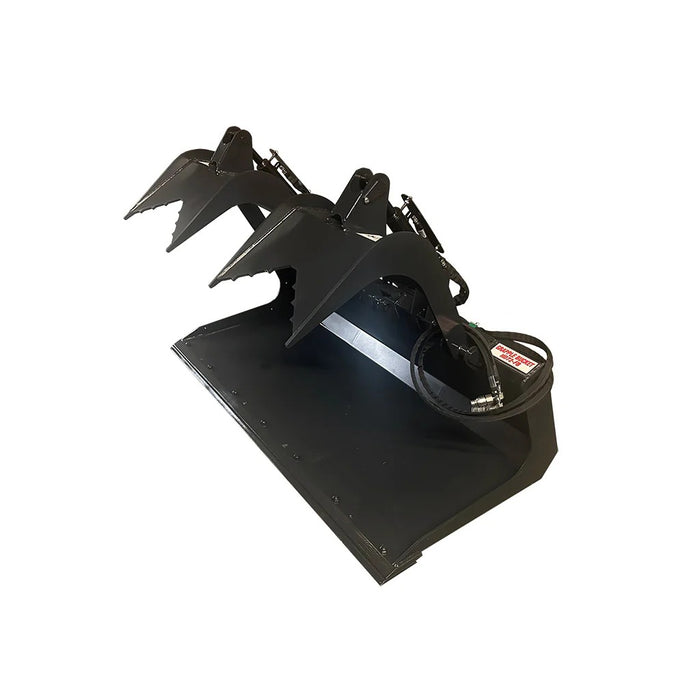

84" Flat Bottom Grapple Bucket With Skid Steer Quick Attach
Original price
$2,199.00
-
Original price
$2,999.00
Original price
$2,199.00
$2,199.00
-
$2,999.00
Current price
$2,199.00
The Stout 84" Flat Bottom Grapple is an excellent "bucket" style grapple that keeps what you're scooping from falling through like a tine style grapple allows. Available in three cutting edge styles either a single cutting edge, double cutting edge, or a tooth edge, the Stout Flat Bottom covers a wide range of needs. Optional Bolt on sides can make the Stout Flat Bottom grapple more versatile.
Features
- Bucket-style design prevents material loss unlike tine grapples, this flat-bottom bucket ensures that debris and loose material stay securely contained during operations.
- Made with high-strength 50,000 psi Grade 50 steel constructed for exceptional durability and long-term reliability.
- Versatile cutting edge options available with single edge, double cutting edge, or tooth edge configurations to suit different job requirements.
Specifications
| Weights |
Single Edge – 805 lbs Double Cut Edge – 865 lbs Tooth Edge – 900 lbs |
| Dimensions (W x H x D) | 84" x 30" x 33" |
| Side Thickness | 3/8" |
| Bucket Skin Thickness | 1/4" |
| Grapple Opening | 32" |
| Grapple Width | 18" |
| Pivot Points | Fully grease-able |
| Cutting Edge — Single | 3/4" x 6" bevel edge welded in |
| Cutting Edge — Double | 3/4" x 6" bevel edge welded in with bolt pattern; 1/2" x 6" double-bevel reversible bolted-on edge |

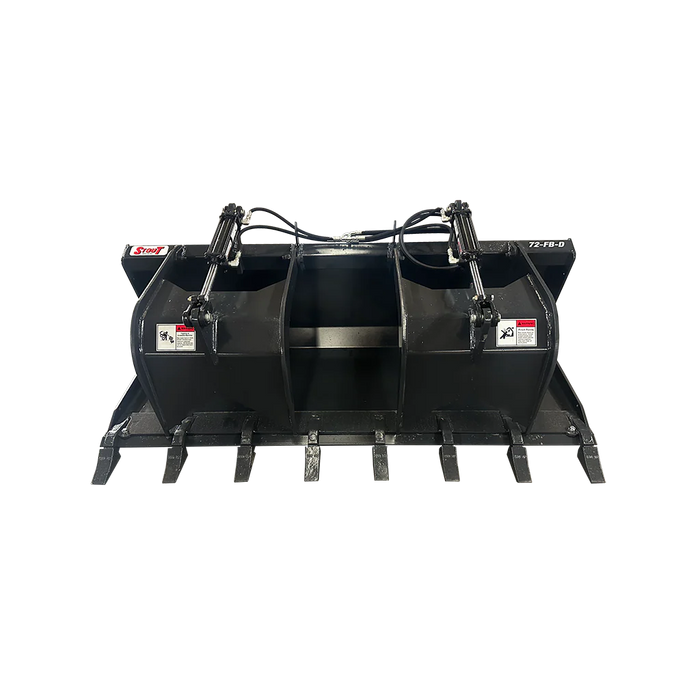

| Cutting Edge — Tooth | 3/4" x 6" bevel edge welded in; 9 teeth |
| Options/Notes | “Double Cutting Edge and Tooth Edge” — buy both and save; optional bolt-on side plates |
| Mount | J2513 Skid Steer Universal Quick Attach |
| Hydraulic Couplers | 1/2" flat-face couplers |
| Hydraulic System | Hydraulic cylinders automatically adjust to uneven bucket loads; fully grease-able cylinder pivots |
| Hydraulic Cylinders | Bore x stroke: 2" x 8"; 2,500 PSI working pressure |
| Hoses | Fully encased in protective sleeves; hose keeper |
| Material | Made entirely of Grade 50 steel (50,000 PSI); Made in USA |
