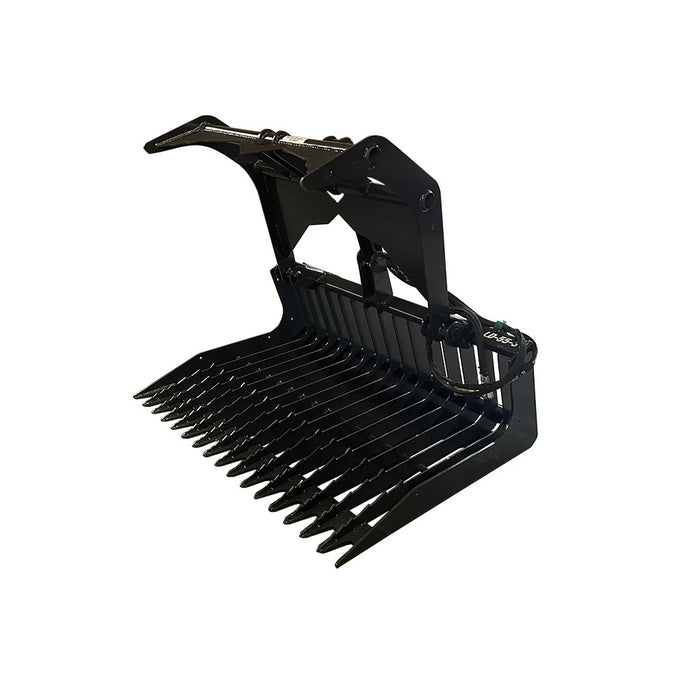

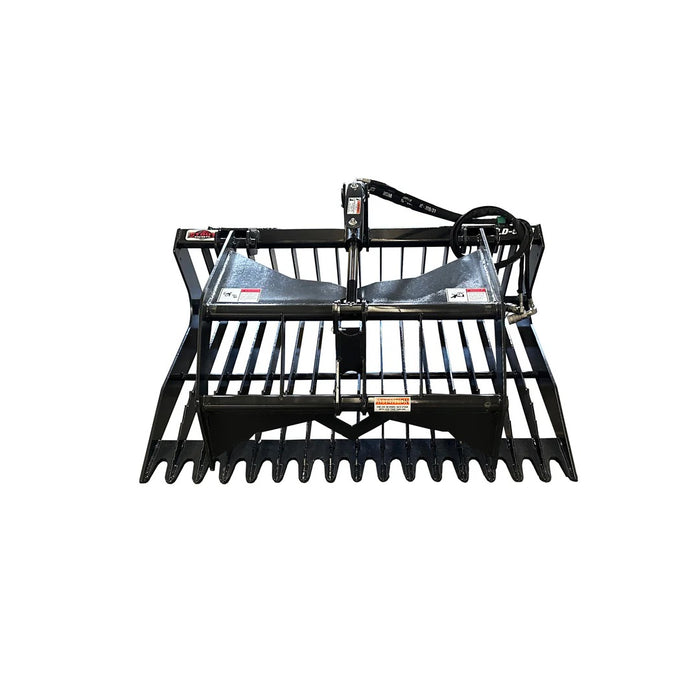

Light Duty 3" Tine Spacing Utility Rock Bucket Grapple with Skid Steer Quick Attach
Original price
$1,749.00
-
Original price
$1,949.00
Original price
$1,749.00
$1,749.00
-
$1,949.00
Current price
$1,749.00
The Stout 3" spacing Utility Rock Grapple Bucket is a Light Duty Utility attachment that is ideal for removing rocks from dirt. This Stout Rock Grapple Bucket has optional sides plates that can be added and removed by the operator. It will remove rock and debris larger than 3" from the soil or other loose material. It is great as an agriculture grapple for uses a farm grapple or ranch grapple might need, like to move brush and small logs. It is available in widths 48" and 55" with 3" tine spacing. The Stout Rock Grapple covers your Light Duty needs whether it's a Tractor Grapple or Skid Loader Grapple.
Features
- Efficient rock separation with 3″ tine spacing expertly crafted to sift and remove rocks larger than 3 inches from soil and loose material.
- Weight-optimized design for light-duty use available in two sizes, 48" (410 lbs) and 55" (440 lbs), making it suitable for farms, ranches, and light construction tasks.
- Optional bolt-on side plates and cylinder guard available allows quick customization for added protection or enhanced performance on varied tasks.
Specifications
| Model Width Options | 48", 55" |
| Unit Weight | 48": 410 lbs; 55": 440 lbs |
| Shipping Weight | 48": 445 lbs; 55": 475 lbs |
| Depth | 41" |
| Height | 28" |
| Tine Spacing | 3" |
| Center Tine Thickness | 1/4" |
| Outside Tine Thickness | 3/8" |
| Grapple Opening | 39" |
| Grapple Width | 35" |
| Grapple Arm Thickness | 1/2" |
| Optional Side Plates | Adds ~30 lbs |
| Optional Cylinder Guard | Adds ~10 lbs |
| Hydraulic Couplers | 1/2" flat-face |
| Mount | Universal Quick Attach (J2513 spec) |
| Hydraulic Cylinder | 2" bore × 8" stroke; fully greaseable pivot points; 2500 PSI working load |
| Material | Grade 50 steel (50,000 psi) |
| Use Guidelines | Not recommended for machines with >1600 lb lift capacity or heavy use |
