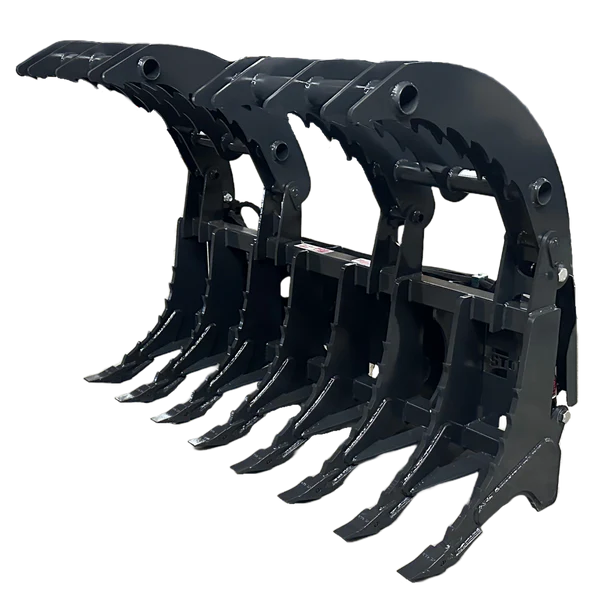

XHD Root Rake Clam Grapple With Dual Grapples and Skid Steer Quick Attach
Original price
$3,899.00
-
Original price
$4,299.00
Original price
$3,899.00
$3,899.00
-
$4,299.00
Current price
$3,899.00
The Stout XHD Root Rake Clam Grapple with dual grapples is a top on the line Xtreme Heavy Duty Grapple designed to hold up to the harshest of conditions. This Root Rake Clam Grapple is offered in 3 different widths, 92", 82", and 72", and has 3/4" thick tines equipped with replaceable digging teeth at 10" spacing. The Independent grapples that have a maximum opening of 46" to grab even the largest items. All pivot points are fully greaseable and hydraulic hoses are encased in protective sleeving and routed through hose guards and held out of pinch point areas with a keeper.
Features
- Constructed with high-strength Grade 50 steel built for maximum durability in extreme land-clearing and debris applications.
- Independent dual grapples with a wide 46" opening enables precise control over irregular loads and accommodates larger material handling.
- 3/4" thick tines with replaceable digging teeth spaced every 10" designed for efficient digging and maintenance flexibility on tough jobs.
Specifications
| Model Width Options | 92", 82", 72" |
| Unit Weight | 92": 1380 lbs, 82": 1250 lbs, 72": 1185 lbs |
| Shipping Weight | 92": 1475 lbs, 82": 1295 lbs, 72": 1225 lbs |
| Depth (Bucket / Total) | 19" / 38" |
| Height | 38" |
| Grapple Opening | 46" |
| Bucket / Grapple Widths | 92" / 24" , 82" / 24", 72" / 24" |
| Tine Spacing | 10" |
| Digging Teeth (replaceable caps) | 92": 10 teeth, 82": 9 teeth, 72": 8 teeth |
| Tine Thickness | 3/4" |
| Grease Points | Fully greaseable grapple pivots and cylinder pivots |
| Hydraulic Hoses | Fully sleeved for protection; hose keeper block holds hoses away from pinch points |
| Hydraulic Couplers | 1/2" flat-face couplers |
| Hydraulic Cylinder Protection | Covers/guards included; cylinder pivots fully greaseable |
| Hydraulic Cylinders | 2" bore x 8" stroke |
| Mount | Universal Skid Steer Quick Attach (J2513 specifications) |
| Construction | Made entirely of Grade 50 steel |
| Origin | Made in the USA |
| Notes | Xtra Tough Grapple |
