XHD Root Rake Clam Grapple With Single Grapple and Skid Steer Quick Attach
Original price
$3,899.00
-
Original price
$4,299.00
Original price
$3,899.00
$3,899.00
-
$4,299.00
Current price
$3,899.00

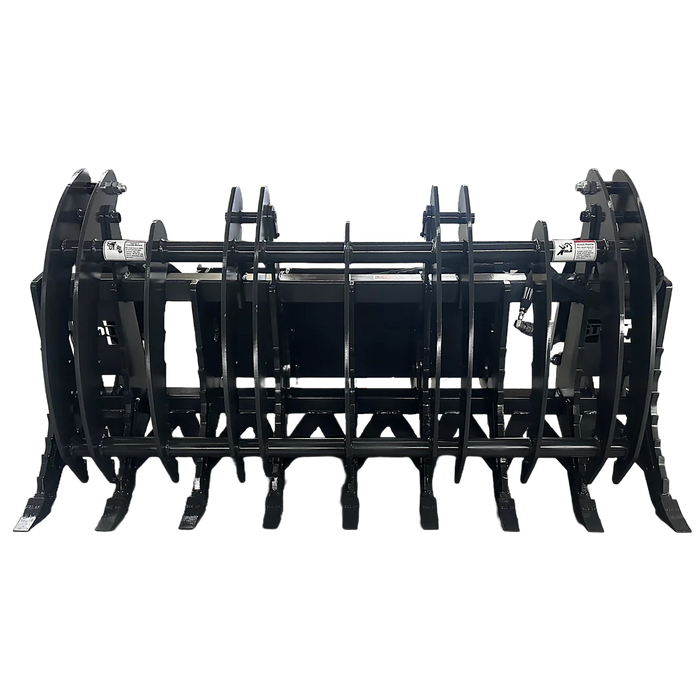

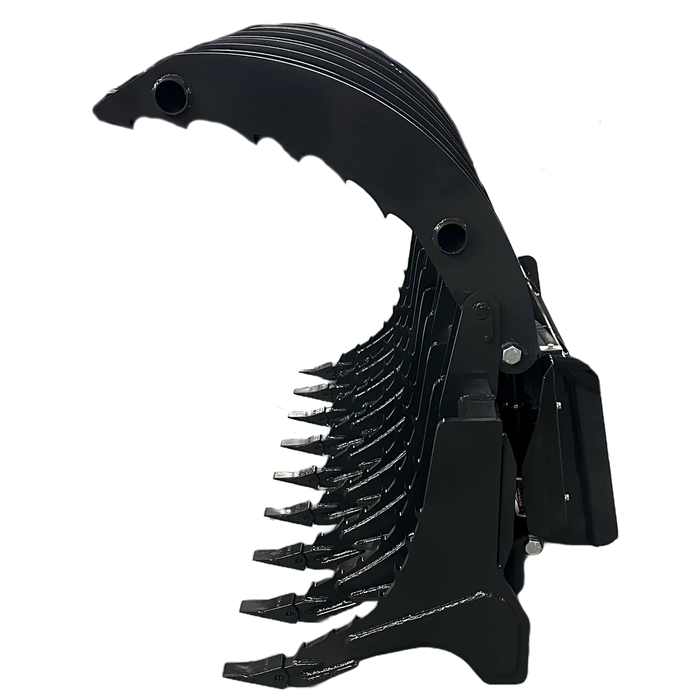

The Stout XHD Root Rake Clam Grapple with a full width single grapple is a top on the line Xtreme Heavy Duty Grapple designed to hold up to the harshest of conditions. This Root Rake Clam Grapple is offered in 3 different widths, 92", 82", and 72", and has 3/4" thick tines equipped with replaceable digging teeth at 10" spacing. The Independent grapples that have a maximum opening of 46" to grab even the largest items. All pivot points are fully greaseable and hydraulic hoses are encased in protective sleeving and routed through hose guards and held out of pinch point areas with a keeper.
Features
- Heavy-duty Grade 50 steel construction ensures exceptional strength and durability to withstand the toughest land-clearing and debris-handling tasks
- Wide 46″ independent grapple opening enables handling of large and irregular materials with enhanced control and versatility
- 3/4″ thick tines featuring replaceable digging teeth spaced at 10″ intervals designed for efficient digging and easy maintenance in demanding applications
Specifications
| Model Width Options | 92", 82", 72" |
| Unit Weight | 92": 1420 lbs, 82": 1275 lbs, 72": 1210 lbs |
| Shipping Weight | 92": 1515 lbs, 82": 1340 lbs, 72": 1270 lbs |
| Depth (Bucket / Total) | 19" / 38" |
| Height | 38" |
| Grapple Opening | 46" |
| Bucket / Grapple Widths | 92"/80" , 82"/68", 72"/68" |
| Tine Spacing | 10" |
| Digging Teeth (replaceable caps) | 92": 10 teeth, 82": 9 teeth, 72": 8 teeth |
| Tine Thickness | 3/4" |
| Grease Points | Fully greaseable grapple pivots and cylinder pivots |
| Hydraulic Hoses | Fully sleeved for protection; hose keeper block holds hoses away from pinch points |
| Hydraulic Couplers | 1/2" flat-face couplers |
| Hydraulic Cylinder Protection | Covers/guards included; cylinder pivots fully greaseable |
| Hydraulic Cylinders | 2" bore x 8" stroke |
| Mount | Universal Skid Steer Quick Attach (J2513 specifications) |
| Construction | Made entirely of Grade 50 steel |
| Origin | Made in the USA |
| Notes | Xtra Tough Grapple |
