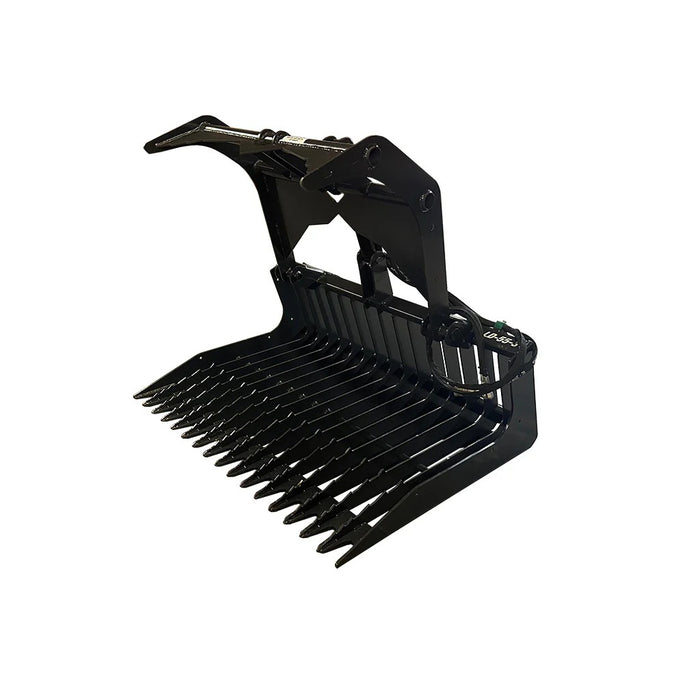

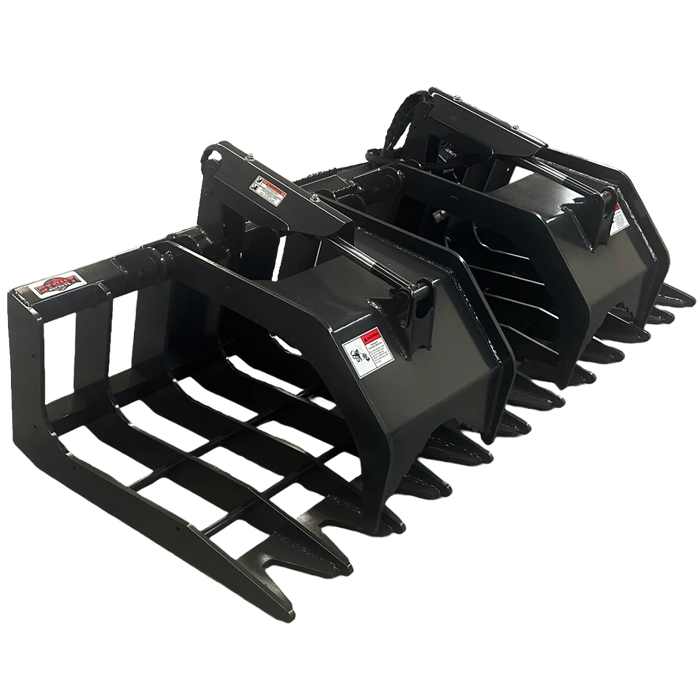

XHD Utility Grapple With Skid Steer Quick Attach
Original price
$2,749.00
-
Original price
$2,849.00
Original price
$2,749.00
$2,749.00
-
$2,849.00
Current price
$2,749.00
he Stout XHD Utility Grapple is constructed entirely from 50,000 psi Grade 50 steel, offering exceptional strength and longevity. It features a universal skid steer quick attach design (J2513 spec), fully greaseable pivot and cylinder points, and sleek, hose-protected construction with keeper blocks to prevent snagging. Available in 76" and 84" widths, the grapple boasts 7" tine spacing, 1/2" thick tines and spreader bar, and a robust 2" bore x 8" stroke hydraulic cylinder, making it ready to tackle land clearing, debris handling, and more. Made in the USA and available with fast, same-day shipping.
Features
- Constructed entirely from high-strength 50,000 psi Grade 50 steel ensures exceptional durability and resilience in demanding applications.
- Universal Skid Steer Quick Attach mount (J2513 spec) offers seamless compatibility with most skid steer loaders for fast and secure connection.
- Protective features including fully greaseable pivot points, sleeved hoses, and a hose keeper designed to reduce wear, prevent snags, and simplify maintenance.
Specifications
| Bucket Widths | 84" and 76" |
| Unit Weight | 84": 945 lbs, 76": 900 lbs |
| Shipping Weight | 84": 985 lbs, 76": 940 lbs |
| Overall Depth | 42" |
| Overall Height | 30" |
| Tine Spacing | 7" |
| Tine Thickness | 1/2" |
| Spreader Bar Thickness | 1/2" |
| Tine Stiffener Bars | Two bars, full bucket width |
| Grapple Opening | 39" |
| Grapple Width | 21" |
| Grease Points | Fully greaseable grapple pivots and cylinder pivots |
| Hydraulic Hoses | Fully sleeved; hose keeper block holds hoses away from pinch points |
| Hydraulic Couplers | 1/2" flat face couplers |
| Hydraulic Cylinders | Automatically adjust to uneven bucket loads when closing; covers/guards included; pivots fully greaseable |
| Cylinder Specs | 2" bore x 8" stroke |
| Mount | Universal Skid Steer Quick Attach (J2513 specifications) |
| Construction | Made entirely of Grade 50 steel |
| Origin | Made in the USA |
