48" Heavy Duty Excavator Bucket Fits CAT 336D, 345C/D, 349E Excavator, TB Linkage
Original price
$10,861.00
-
Original price
$10,861.00
Original price
$10,861.00
$10,861.00
-
$10,861.00
Current price
$10,861.00

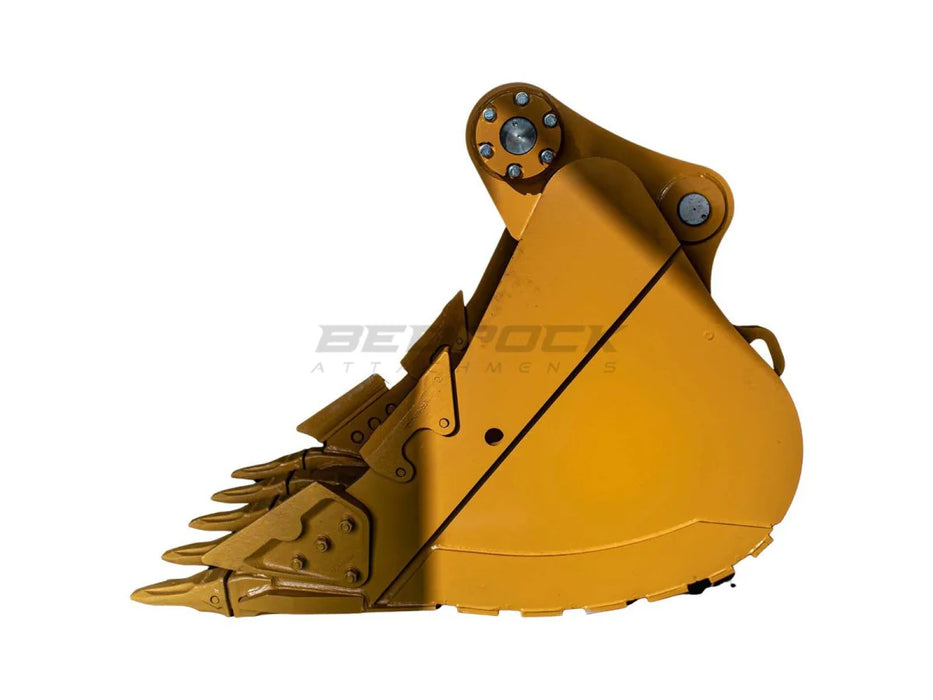

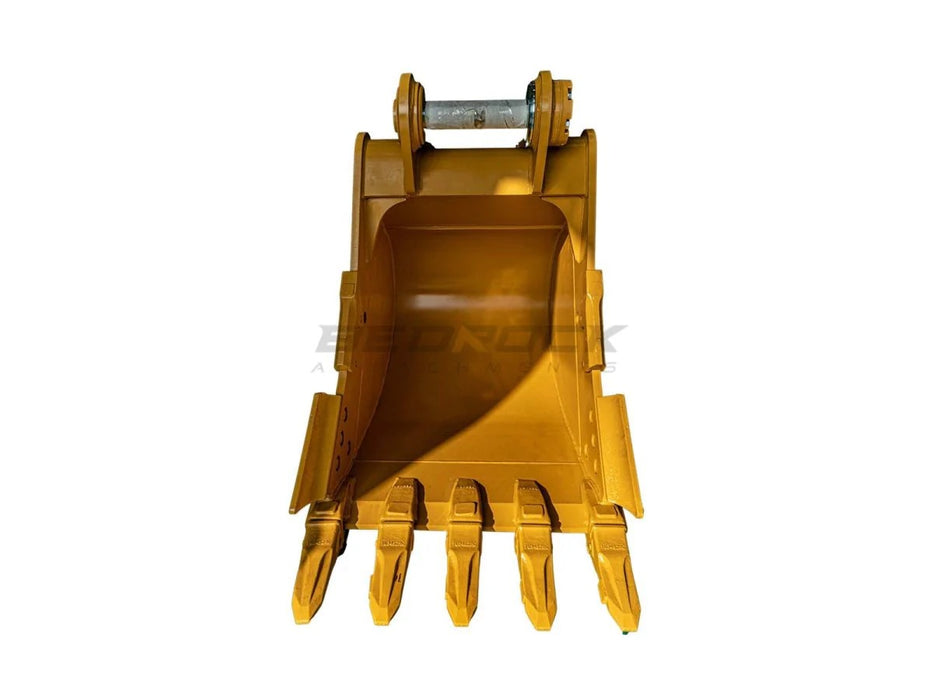

The 48" Heavy-Duty Excavator Bucket with Adjuster (TB Linkage) is engineered for heavy-duty applications with CAT 336D, 345C/D, and 349E machines. With a wide 48-inch (1,200 mm) profile and a 1.6 m³ (2.09 yd³) capacity, it’s built for demanding rock and material handling tasks, featuring 5 durable teeth, a stick pin of 110 mm and linkage pin of 100 mm, and weighing approximately 4,472 lb.
Features
- Heavy-Duty TB Linkage Construction Designed for tough rock excavation and high-demand material handling.
- Spacious 1.6 m³ Bucket Capacity Equips operators with substantial load volume to enhance efficiency.
- Complete Installation Package Included Arrives ready-to-use with 5 teeth and both 110 mm stick pin and 100 mm linkage pin.
Specifications
| Compatible Models | CAT 336D, 345C/D, 349E (Also fits Next-Gen 349F*, 352F*) |
| Width | 48" |
| Capacity | 1.6 m³ (2.09 yd³) |
| Teeth Included | 5 |
| Stick Pin Diameter | 110 mm |
| Linkage Pin Diameter | 100 mm |
| Total Weight | 4,472 lb |
