Standard Duty Root Grapple
Original price
$3,640.00
-
Original price
$4,690.00
Original price
$3,640.00
$3,640.00
-
$4,690.00
Current price
$3,640.00
The Loflin Standard Duty Root Grapple is engineered for efficient land-clearing operations, uniquely designed to latch roots, rocks, and brush while allowing loose soil to sift through. Featuring independent grapple tines powered by dual 2" x 10" cylinders, it delivers up to 9,500 lb of gripping force, making it ideal for heavy-duty debris handling.
Built with 1/2" thick steel tines and a reinforced quick-attach plate, this powerful grapple supports machines up to 75 HP. It also includes fully protected hydraulic hoses, covered cylinders, greaseable pivot points, and oversized 1 1/4" greaseable pins, offering ease of maintenance and long-lasting durability right out of the box.
Features
- Allows dirt to fall through, facilitates pile formation Designed with spaced tines and an open-bottom construction to sweep away debris while soil sifts through - keeping roots, logs, brush, and rocks contained.
- Powerful independent grapple tines with 2" × 10" cylinders Provides up to 9,500 lbs of gripping force, making it ideal for uneven or bulky material handling.
- Heavy-duty construction with greaseable maintenance points Built with 1/2" thick steel tines, reinforced quick attach plate, fully protected Hydraulic hoses and cylinders, and oversized greaseable 1 1/4" pins for long-lasting reliability.
Specifications
| Dirt Handling | Spaced tines allow soil to fall through while retaining roots and debris |
| Hydraulic Cylinders | Dual 2" x 10" cylinders with independent operation |
| Grapple Force | Up to approximately 9,500 lb |
| Steel Construction | 1/2" thick steel tines with reinforced quick‑attach plate |
| Hydraulic Protection | Fully protected hoses and covered cylinders |
| Pivot Points | Fully greaseable hinge points (including oversized 1 1/4" pins) |

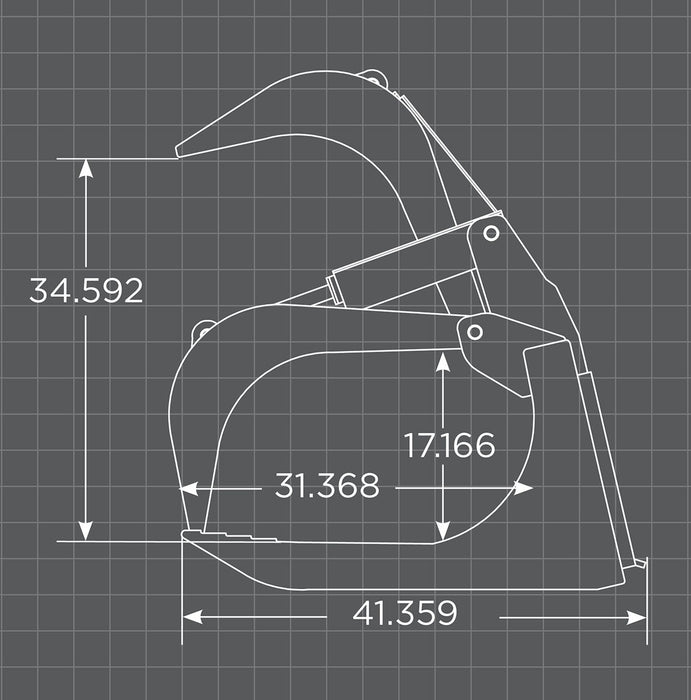

| Opening Width | Approximately 34 1/2" with upward-sloped tines |
| Tine Spacing | 8 1/2" - 9" standard spacing; custom options available |
| Machine Compatibility | Designed for skid steers ≤ 75 HP |
| Available Sizes | 60", 66", 72", 78", 84" (custom sizes also available) |
